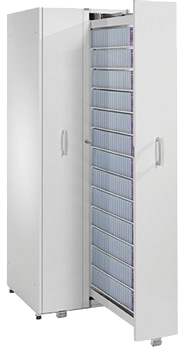

Vertical pull-out cabinets

All storage media can also be archived in combination in this media cabinet. Height-adjustable shelves are adjusted to the different media.

LTO, DLT, 4mm, 8mm, 3590, 3592, CD, DVD and others can be locked by special setup components.
With shelves, center rails, rubberized or magnetized supports and racks of any format that can be supplied separately, the cabinet can be adapted to changes in data carriers and media formats at any time.

Technical data:

  • Steel media cabinet with 2 fully extendable vertical drawers
    on telescopic pullouts
  • height 1870 mm, width 612 mm or 832mm, depth 680 mm (in closed state)
  • Total depth with drawer extended: approx. 1400 mm
  • Shelf dimensions: length 595 mm, width 245 mm or 358 mm, edge height 8mm
  • Shelves are adjustable in height by 15 mm each
  • Weight with standard equipment: approx. 140/160 KG (empty)
  • Cabinet painting according to our color concept. Standard color gray, other colors on request
  • Central locking system; keyed alike or differently, also available as master key system
  • Spacer bars made of flexible plastic fill the space between 2 rows of cassettes, locking them inwards
  • Ball bearing rollers under the drawers allow both drawers to be pulled out at the same time and prevent them from tipping over
  • Additional purchase of cabinet equipment for later retrofitting
    possible at any time
  • Upon delivery, the cabinets are assembled by us ready for operation (screwed together and adjusted)

5 years warranty

Furnishing modules media cabinet:

Support angle

Spacer bars

Single space systems

Single space systems
